SPECIFICATIONS

WLtoys K170 RC Helicopter 2.4G 6-Aixs Gyroscope 4CH Altitude Hold Optical Flow Remote Control Helicopter Toys for Children

Note: Please note to distinguish the model before purchasing the order. The model parameters are as follows:

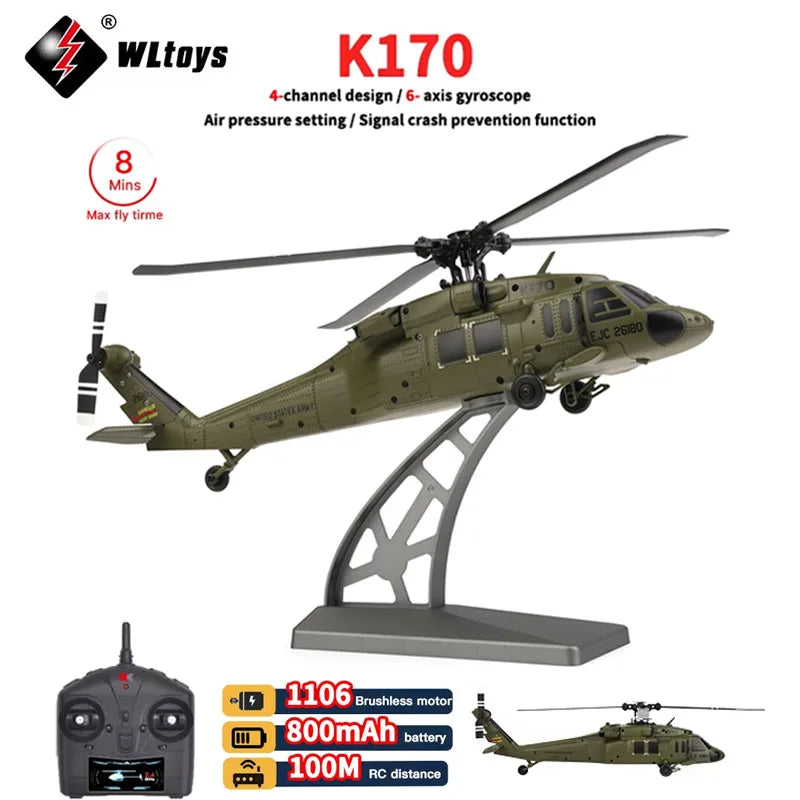

Model: K170 (Black Hawk UH-60L)
Product Name: Four way four propeller aileron free helicopter
Material: Engineering Composite Materials

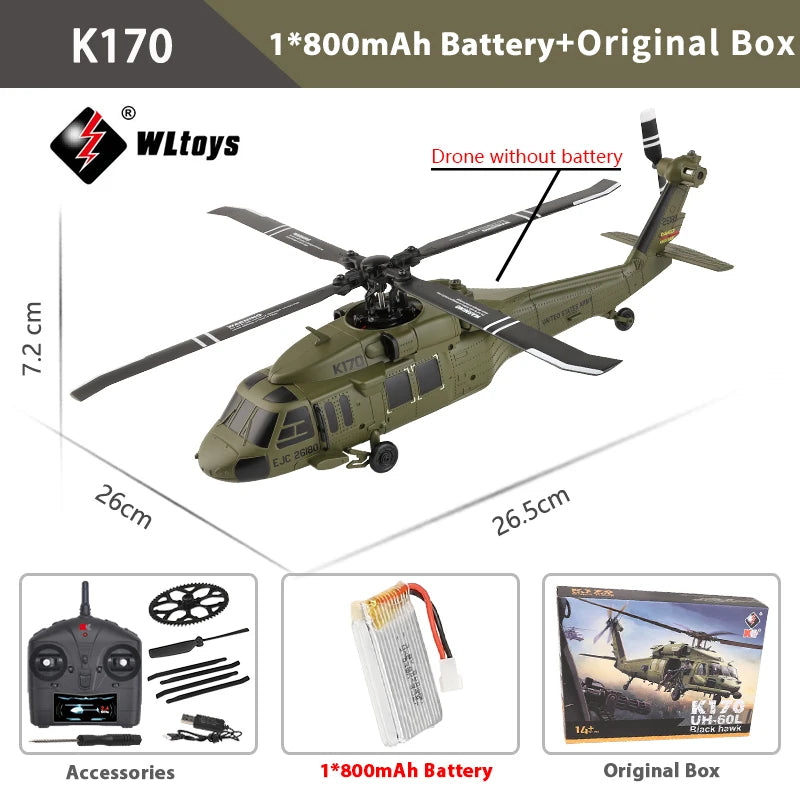

Product size: rotor diameter 260mm, body length 265mm, height 72mm
Color box size: 36*26.5*9CM
Outer box size: 56*38*57CM
Product weight (bare): 85g (excluding battery)
working time: about 8 mins
Charging time: 120 mins
Remote control distance: 80-100 m

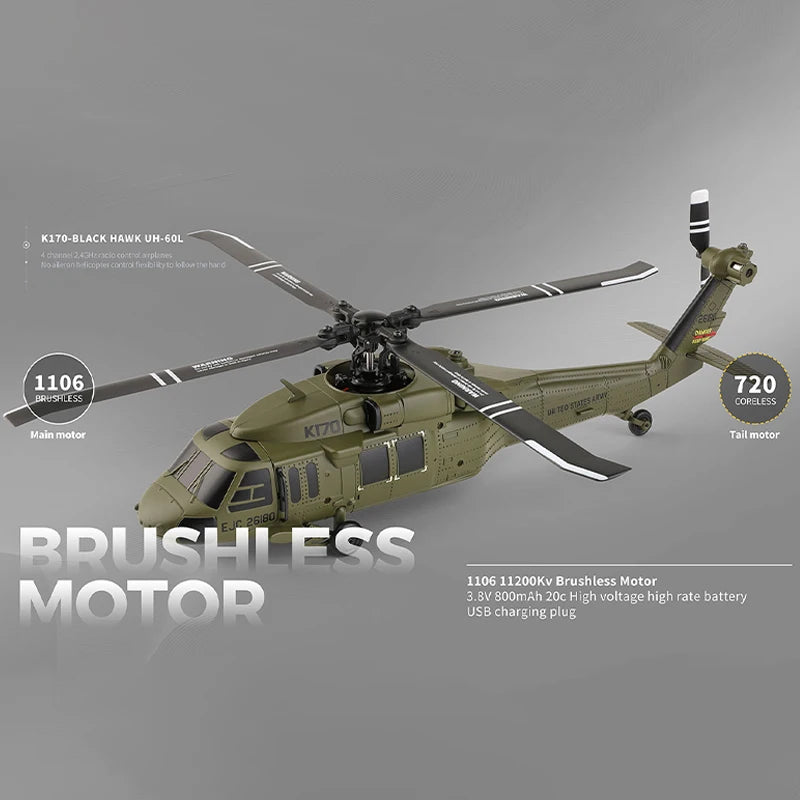

Motor: Main motor (brushless) one thousand one hundred and six 11200KV Tail motor (hollow cup)720
Battery: 3.7V 800mAh 20C Remote control 6 * 1.5AA (not included)

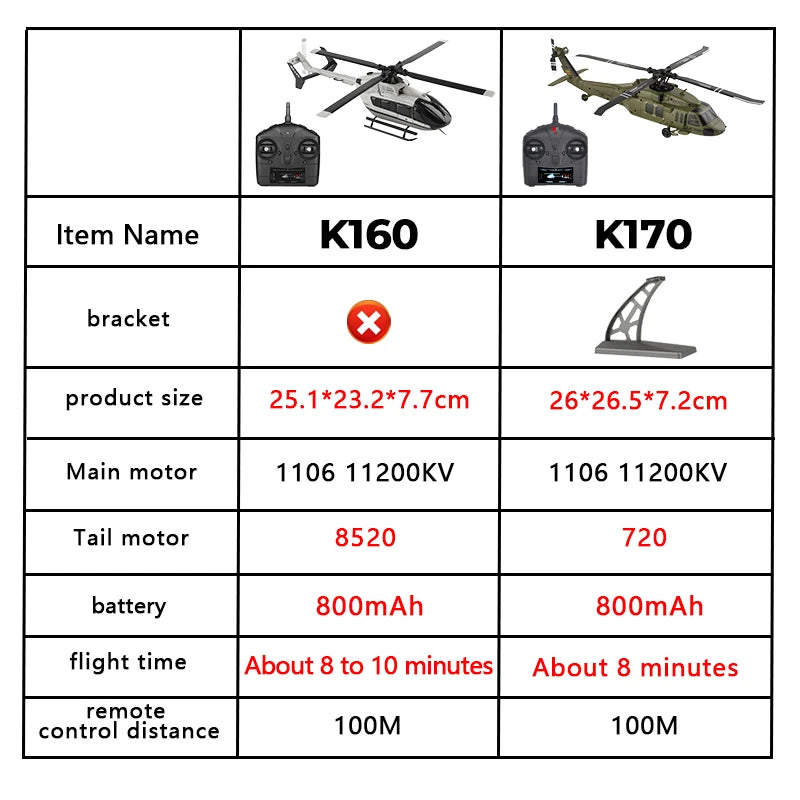

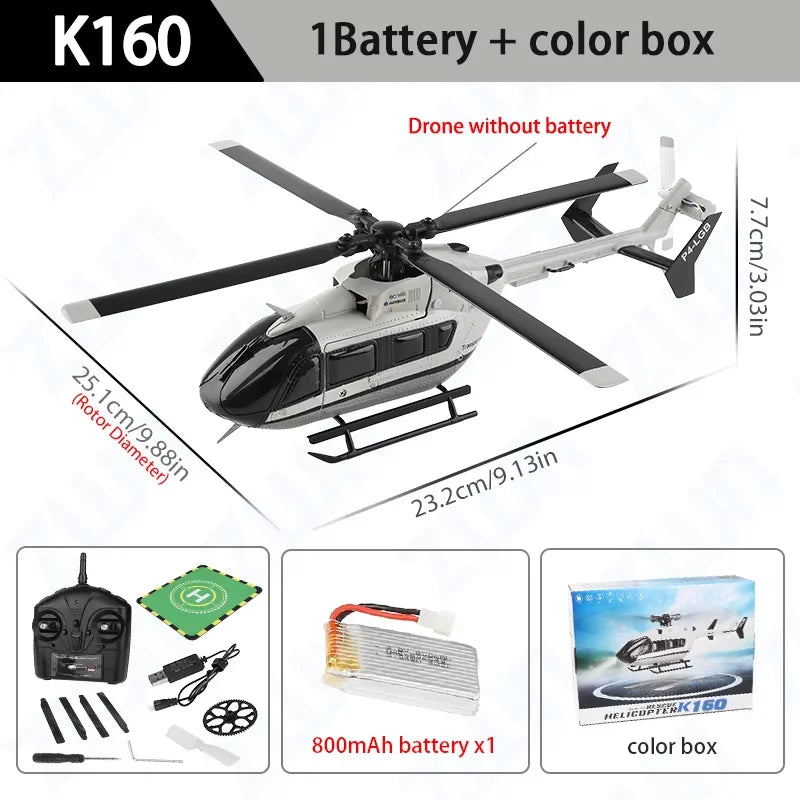

Model : K160
product material : engineering composite
motor type：Main motor(brushless) 1106 11200KV，Tail motor 8520
Battery capacity : 3.8V 800mAh 20C
Remote control distance : 100m
Charging time : 120 minutes
flight time : About 8 to 10 minutes
Remote control mode: 2.4G remote control

Function:

1. 4-channel remote control Free switch between left and right hands, with functions such as airplane and remote low voltage prompts.

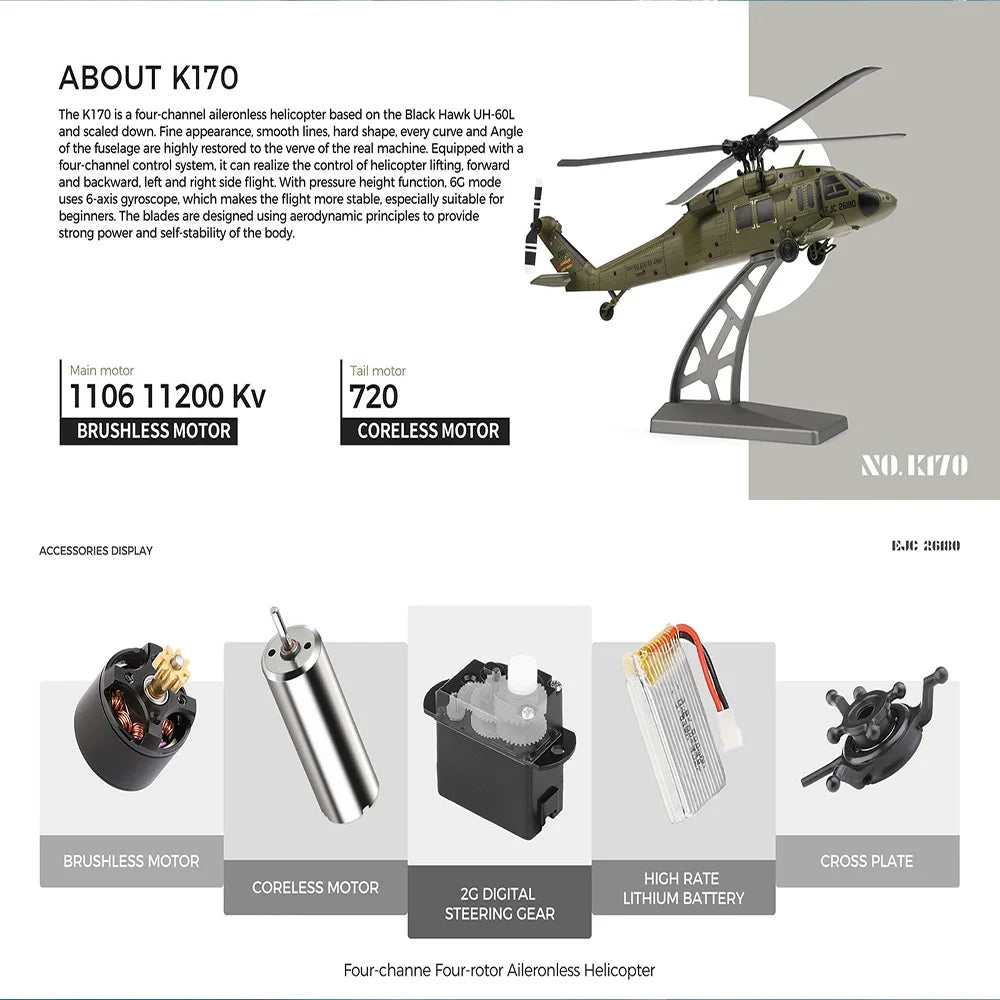

2. The Black Hawk UH-60L reduces proportion of actual aircraft, with a refined appearance and high simulation of four propellers without ailerons.
3. Design propeller blades based on aerodynamic principles to provide strong power and self stability of the aircraft.

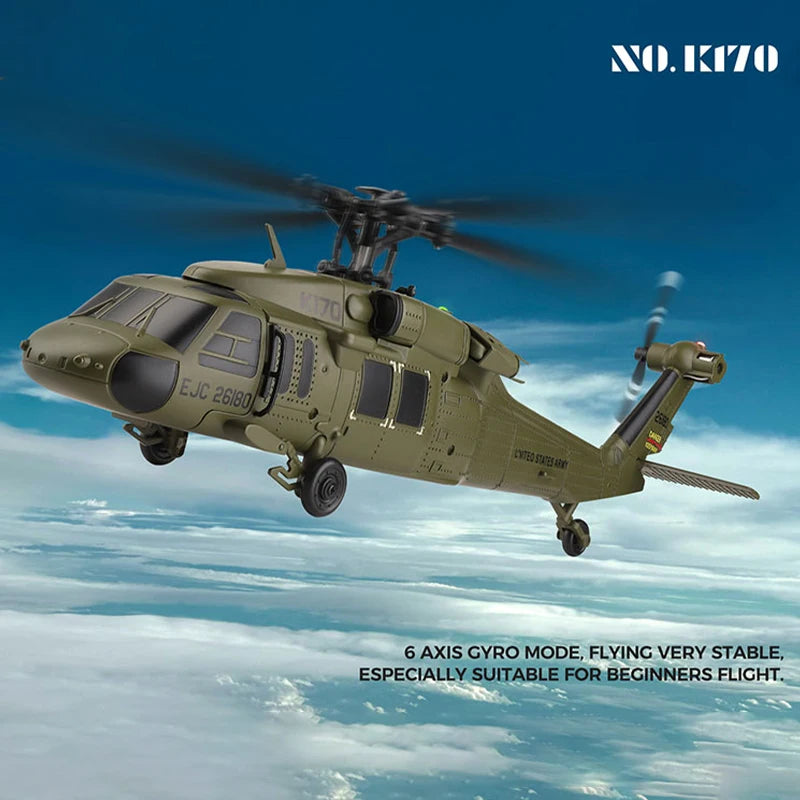

4. 6G mode uses the 6-axis gyroscope for stable flight, making it particularly suitable for beginners to fly.
5. Equipped with a dedicated USB charger, it effectively protects the battery from overcharging.

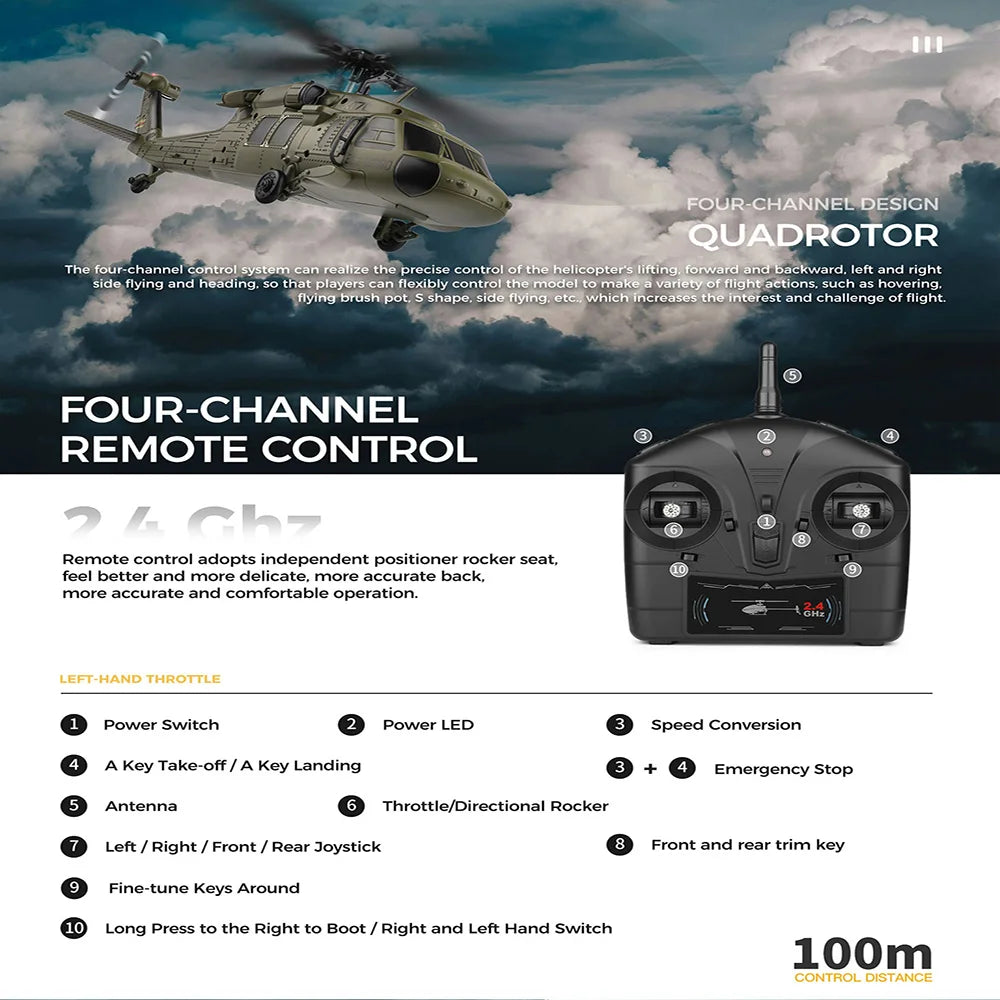

6. The remote control adopts an independent locator joystick seat, which has a more delicate touch and more accurate centering, making customer operation more precise and comfortable.
7. Using high-efficiency 2G digital servos, with fast response, high precision, and precise return, the aircraft has a good flying feel and longer lifespan.
8. Simple 4-channel design, using 6-axis gyroscope, with high pressure function for more stable flight; Remote control functions such as one key takeoff, one key landing, ascent and descent, forward and backward, left and right steering, and left and right side flight; Make the product easier to operate and more suitable for beginners.
9. The use of a 1106 external brushless motor provides stronger power and comes standard with 3.8V 800mAh High voltage battery with a high rate of 20 ° C, with a flight time of approximately 8 mins
10. The aircraft adds a signal loss and crash prevention function: if the remote control signal distance indoors or outdoors is abnormal and cannot be controlled, the aircraft will maintain its current altitude for 2 seconds and then slowly land. The controllable range of the remote control should be restarted in a timely manner before the aircraft lands, and then the throttle lever can be pushed up and down to connect to the aircraft for further control.

K170

K160
